InBand Omni Product specifications

The InBand Omni 25/50 is a wireless electronic scoring target, based on acoustic sensors. It can be run from an outlet or a common power bank. The target has a shoot/no shoot light unit. In production green technology is followed.

Allowed Calibers

  • Typical sport and center fire pistol calibers supported.

Operating principle

  • Acoustical sensing with 4 microphones

Detection area

  • 50cm X 50cm

Power source

  • "12V DC (min 1A)

  • 5V standard USB (5A)"

Options

  • Red/green light with timer control

  • Possible to chain multiple targets

Connectivity

  • USB and bluetooth option

  • Ethernet (option for multiple targets)

Shielding

  • 5mm structural steel

Physical dimensions

  • H: 180

  • W: 710mm
  • L: 750mm

Weight

  • 26.7 kg

Accessory products

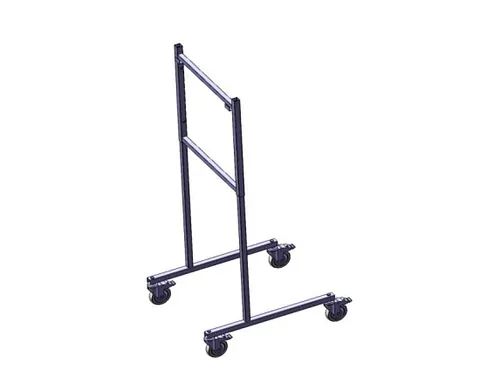

Foot package OMNI

Painted RAL7035 or black

600x600 Pistol OMNI

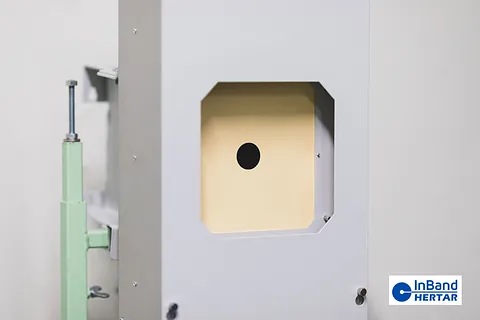

This pistol target measures 600x600 mm with a depth of 682 mm and weighs 51 kg. It features a boron steel hit surface with round welded construction. For optimal performance, especially indoors, it is recommended to use a vacuum cleaner with a 51 mm outlet pipe. A trash collector is included, and the target is finished in RAL 7035 (light grey) paint.

Adjustable Foot Package

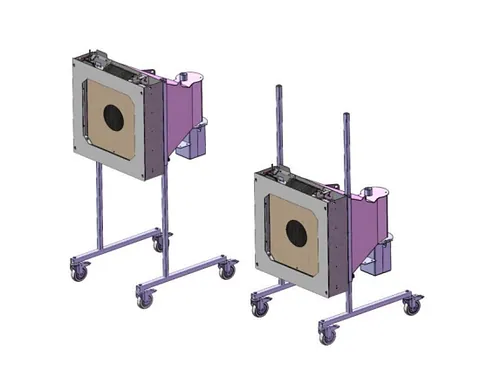

This InBand bullet system features a 600x600 mm target (4236) with an adjustable foot package (4202) for customizable height. Please note that the InBand device is not included.

For more information or to place an order, please fill out the form below. Our team will respond within 1-2 business days.
